ZALMAN 6-port ALPHA2 DS ARGB controller

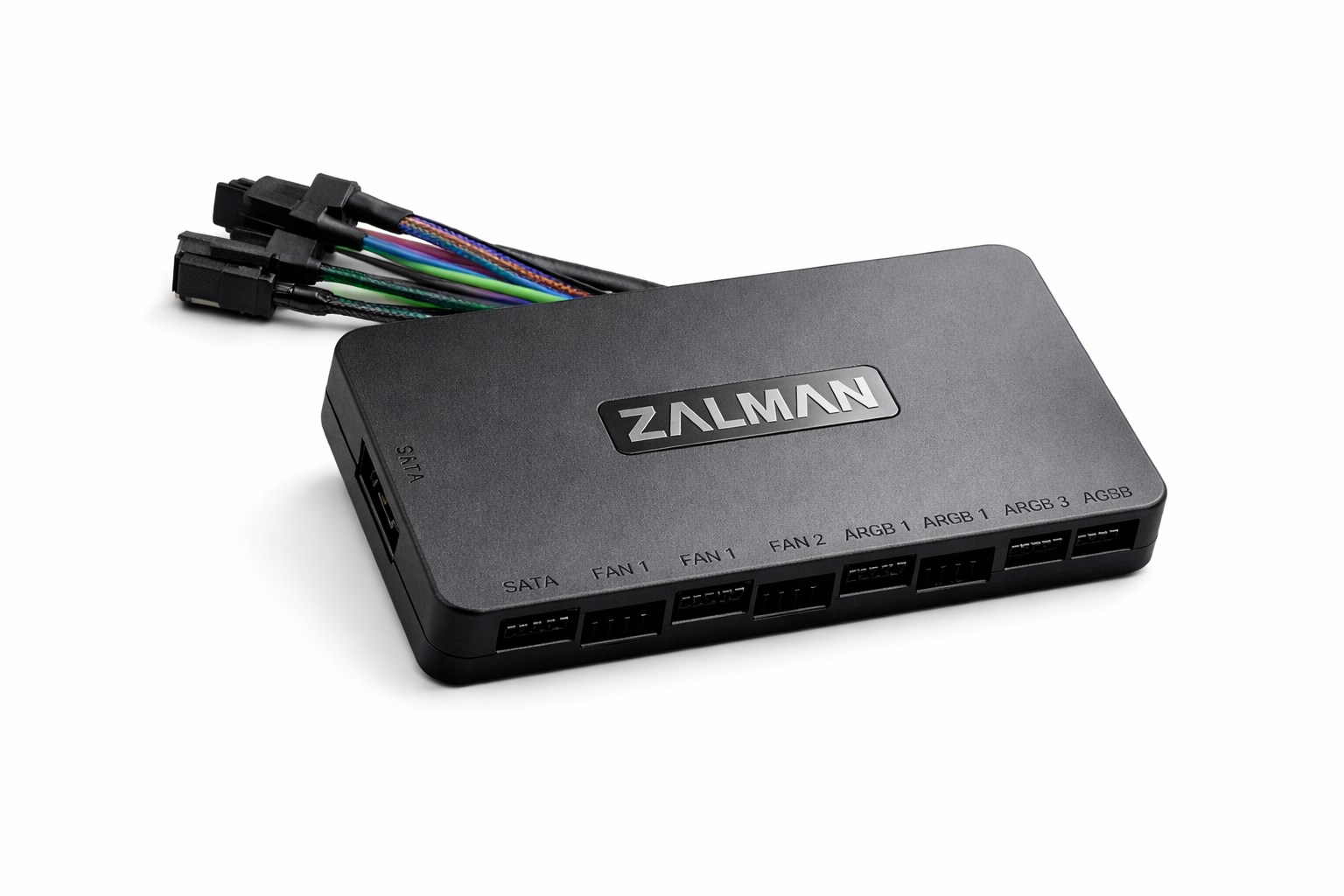

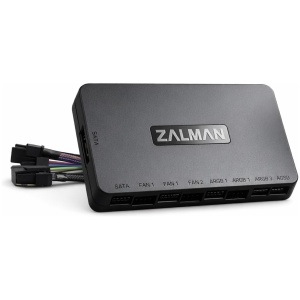

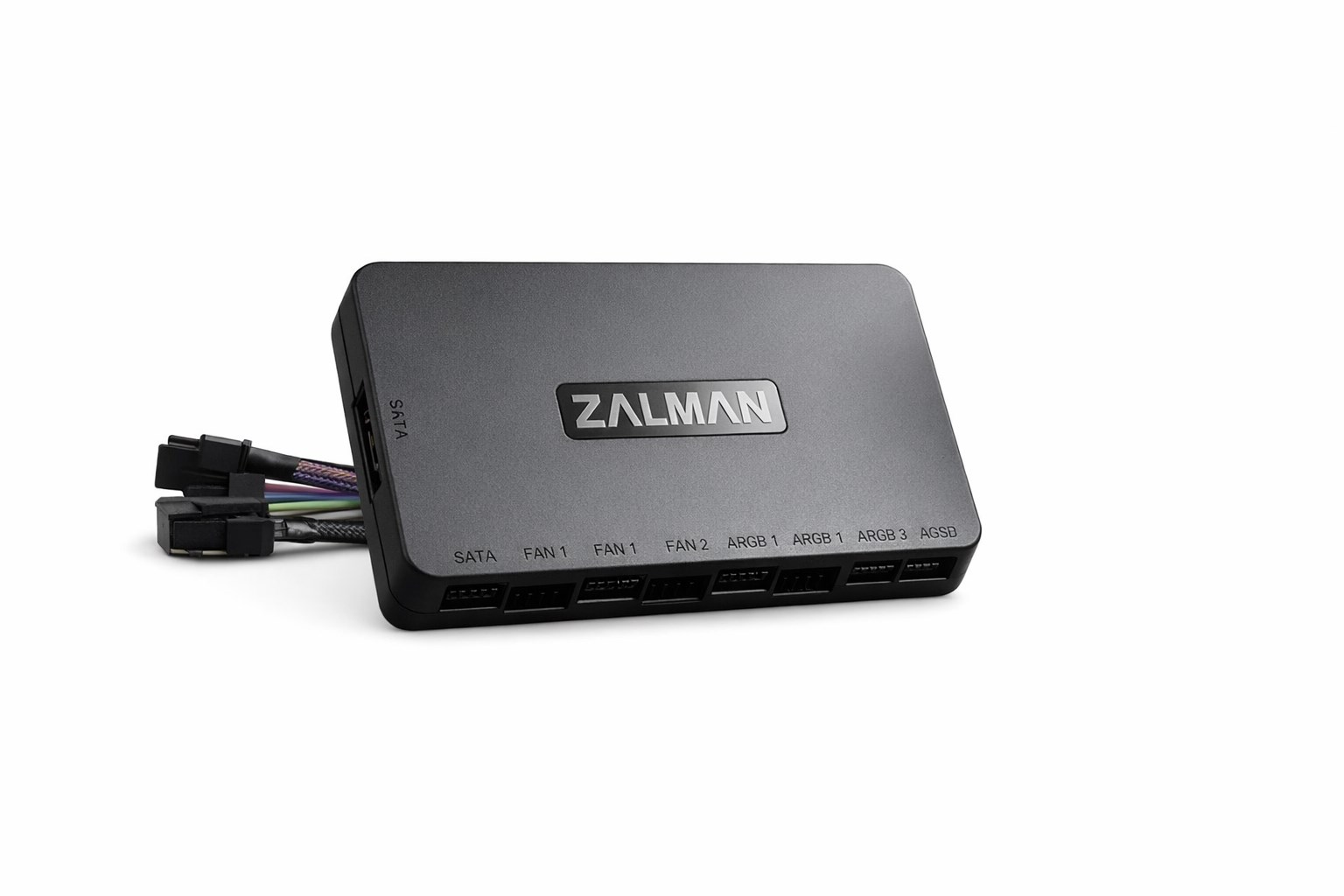

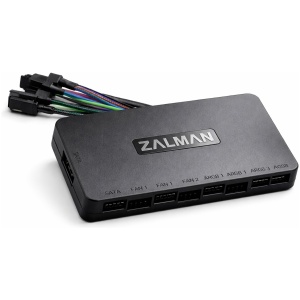

Zalman Alpha2 DS ARGB Control BOX — 6-port controller The ARGB Control BOX controller serves as the central control hub of the Zalman Alpha2 DS liquid cooling system. Its purpose is to unify fan and ARGB lighting control into a single ecosystem, so the user does not need to rely on multiple separate headers on the motherboard. The controller provides six independently controlled PWM ports and six ARGB ports for connecting the pump, fans, and IPS display. This design makes it possible to manage all cooling components centrally through one device. The connection to the motherboard is made via a USB cable plugged into an available USB 2.0 header on the board, which allows the system to be controlled through Zalman’s proprietary OZ software. If needed, ARGB and PWM signals can also be synchronized with motherboard headers or other controllers for users who prefer to work with the motherboard manufacturer’s software utilities such as ASUS Aura Sync, MSI Mystic Light, and others. The fans support Daisy Chain technology with serial connection through 6-pin cables, which makes it possible to connect all three radiator fans to the controller in a single chain without using a separate header for each one. Each fan is connected through two lines: power and speZalman Alpha2 DS ARGB Control BOX — Connector Specifications Fan Ports:  – Type: 4-pin PWM  – Voltage: 12V DC  – Quantity: 6 ports  – Function: Fan speed control (PWM signal) ARGB Ports:  – Type: 3-pin ARGB header  – Voltage: 5V  – Quantity: 6 ports  – Function: Addressable RGB lighting control for fans and components Daisy Chain Connector:  – Type: 6-pin proprietary  – Function: Sequential (daisy chain) fan interconnect — allows fans to be linked in a single chain without individual port wiring Controller Power Input:  – Type: SATA power connector  – Function: Main power supply from PSU to the controller PC Communication Interface:  – Type: USB 2.0 internal header (9-pin)  – Function: Connection to motherboard for software control via Zalman OZ application Motherboard ARGB Sync:  – Type: 3-pin 5V ARGB header  – Function: Hardware synchronization with motherboard ARGB header (compatible with ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, etc.) Pump / Waterblock Port:  – Type: 4-pin PWM  – Voltage: 12V DC  – Function: Dedicated port for pump speed control Motherboard Compatibility:  – Intel: LGA 1851 / LGA 1700 / LGA 1200 / LGA 115X  – AMD: AM5 / AM4
