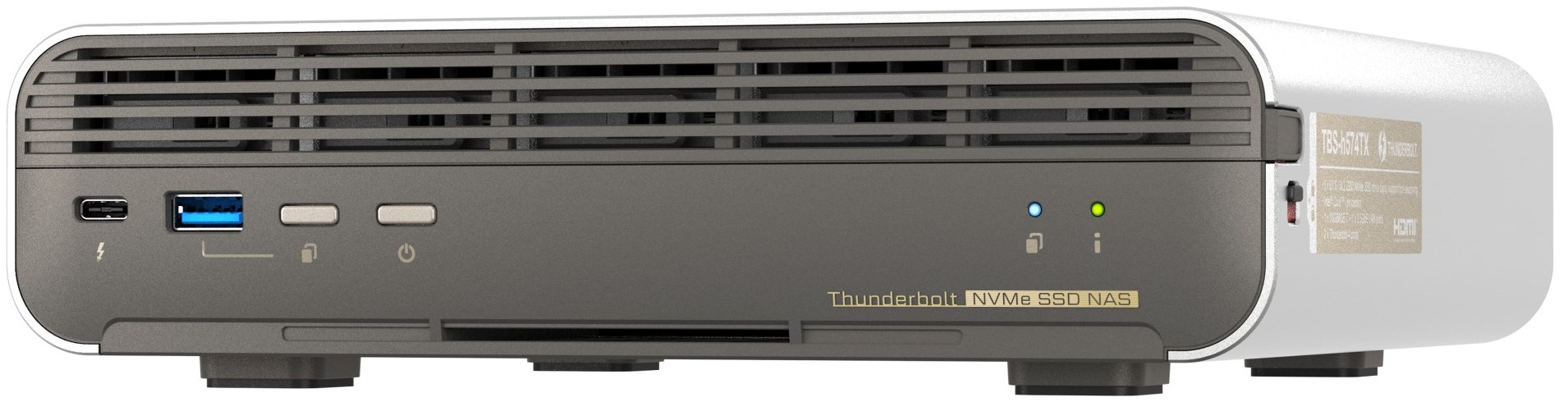

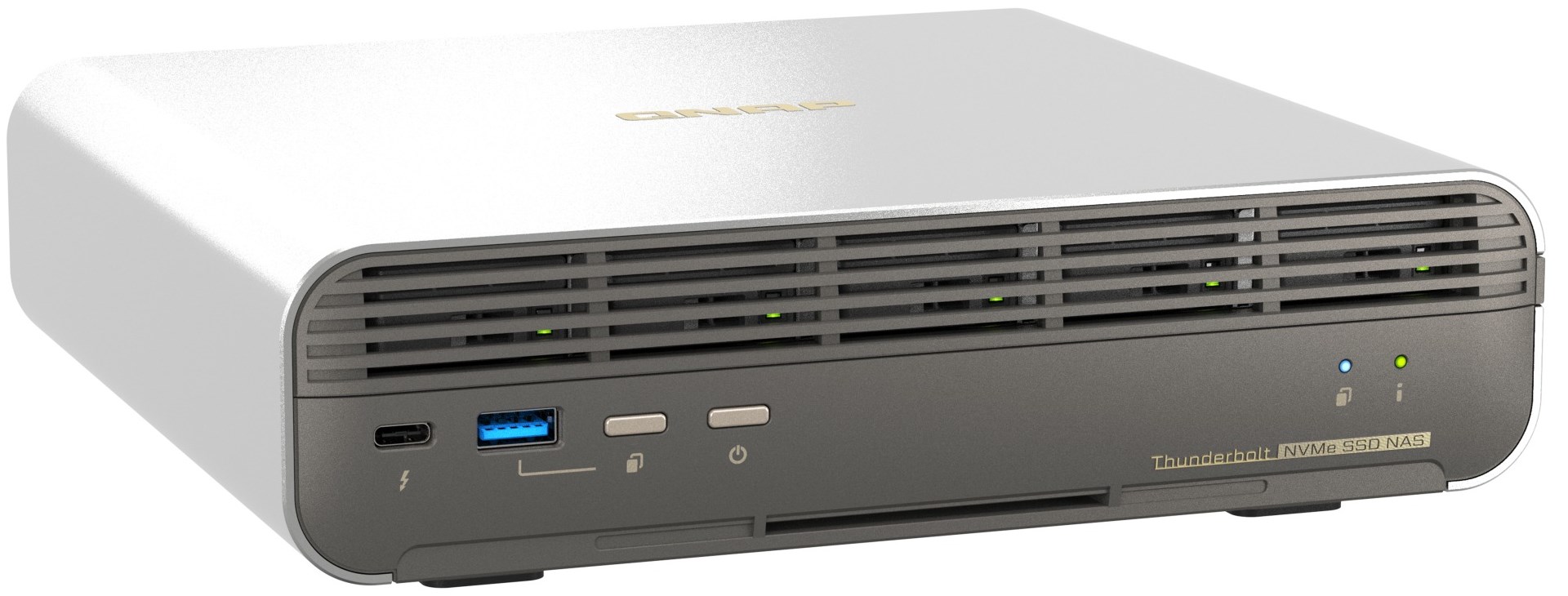

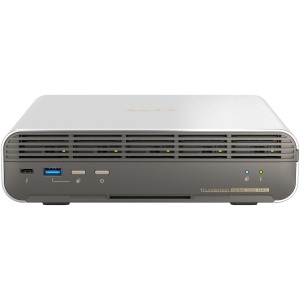

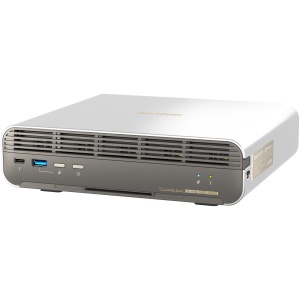

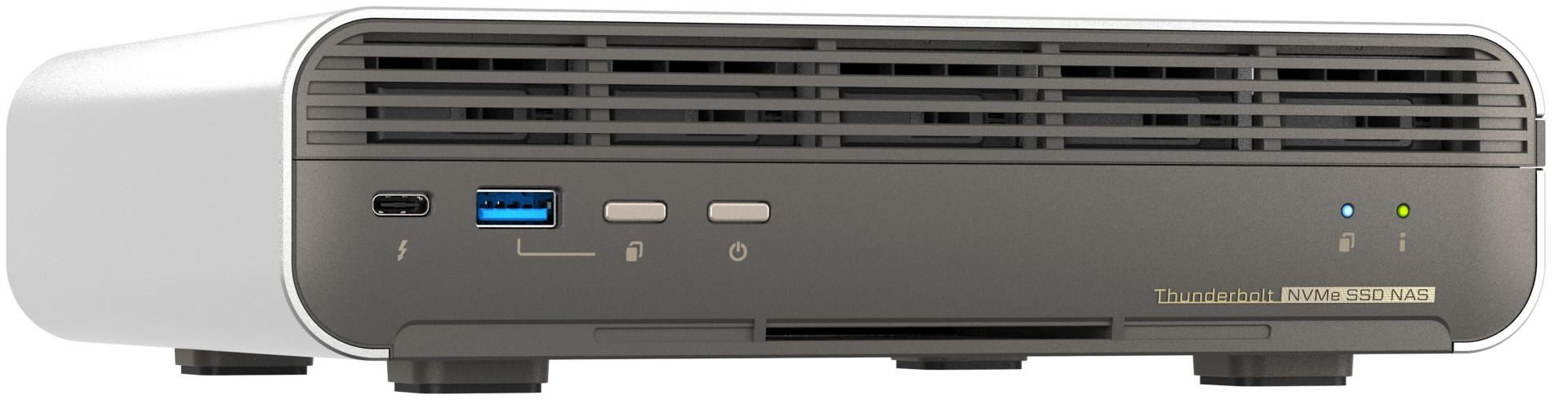

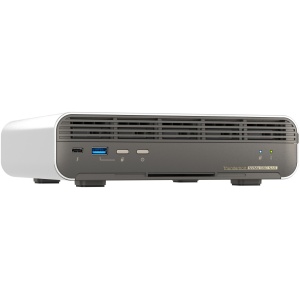

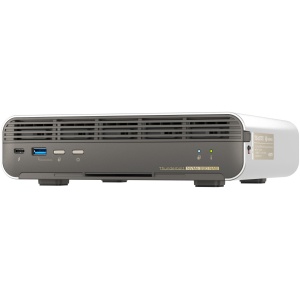

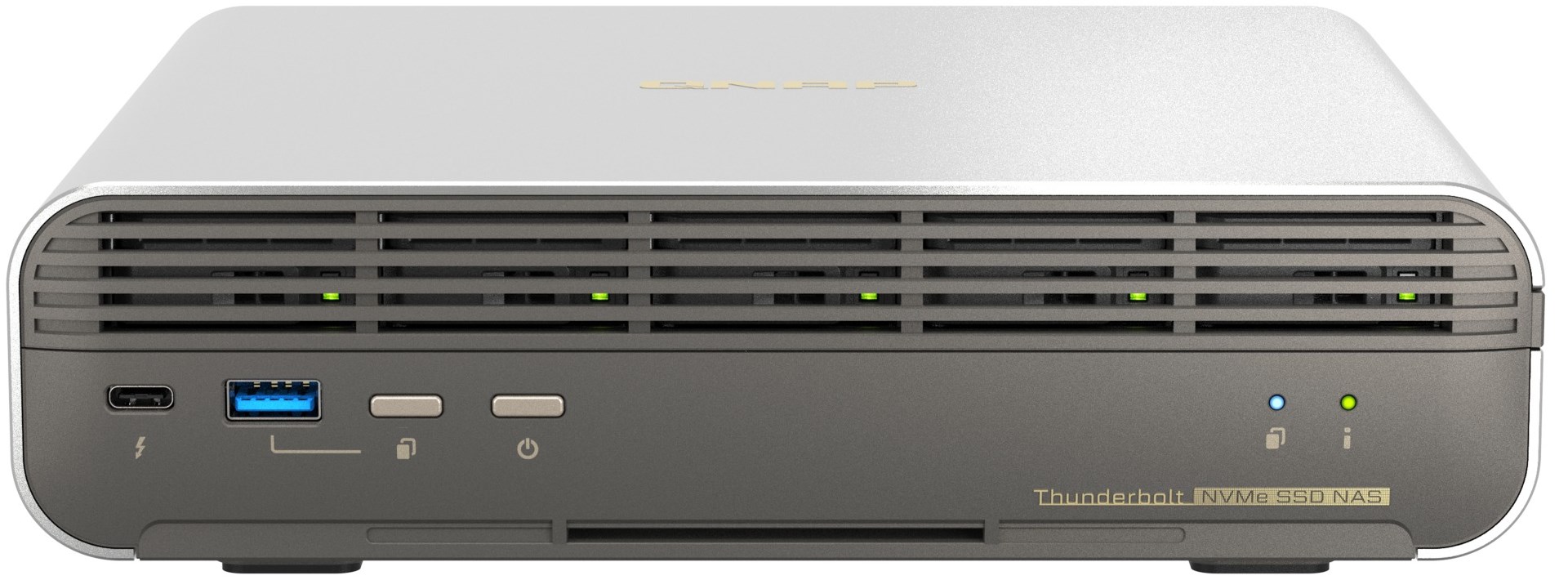

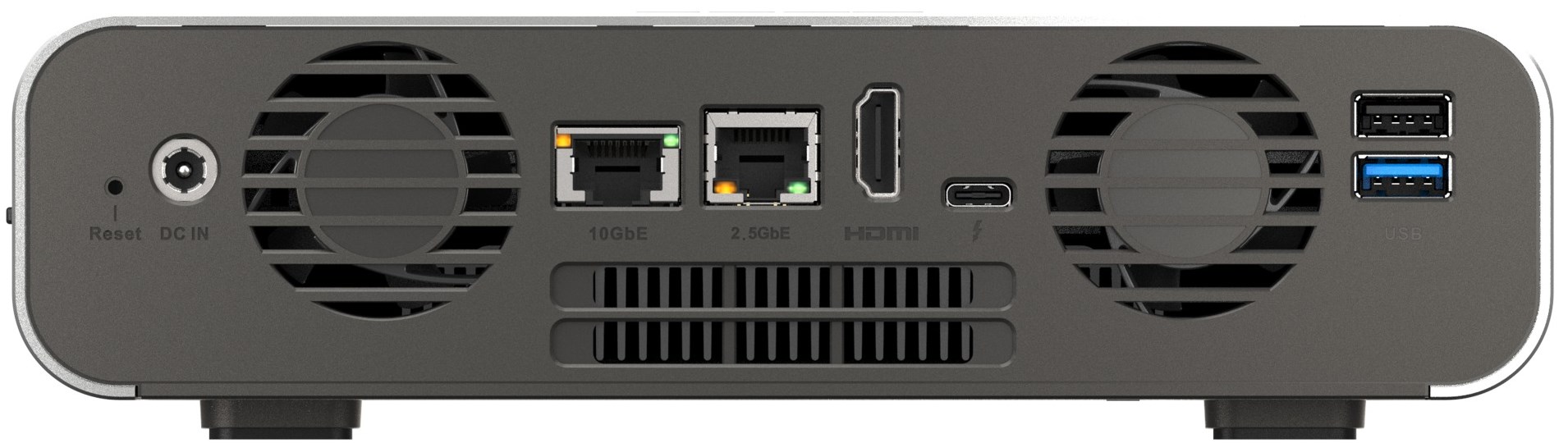

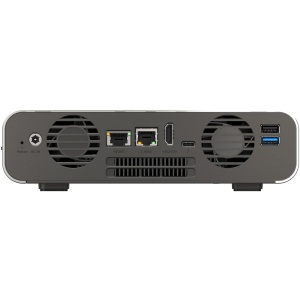

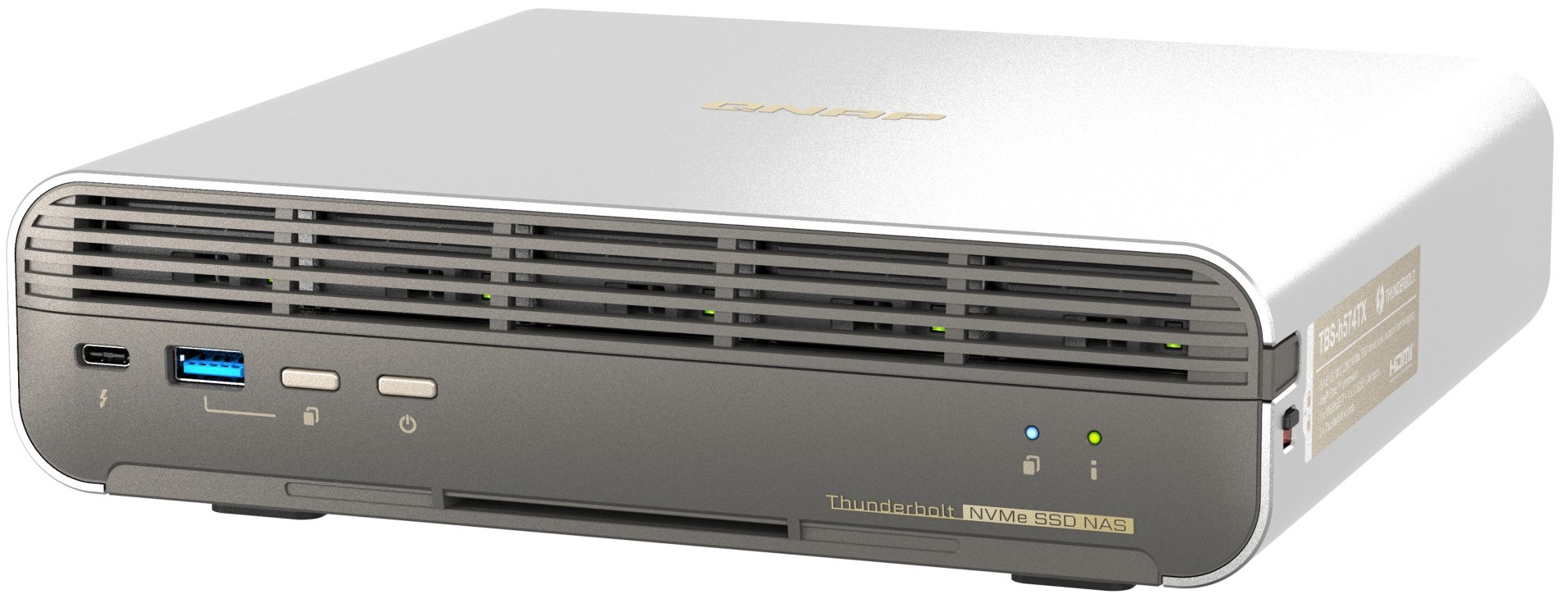

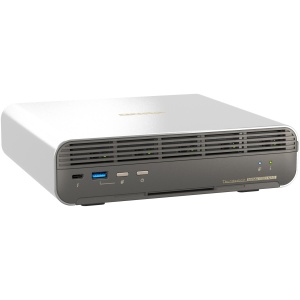

QNAP TBS-h574TX-i5U-16G /5×M.2 NVMe/i5-1235U/16GB/10GbE/Thunderbolt 4

TBS-h574TX is a Thunderbolt™ 4 all-flash NASbook designed for on-location shoots, small studios, small-scale video production teams, and SOHO users. Featuring an Intel® Core™ processor and high-speed I/O, TBS-h574TX enables online editing, visual effects (VFX), file transfer and backup for both Mac® and Windows® creators. Hot-swappable SSD support also ensures uninterrupted project flows. Pre-installed with QuTS hero OS, it supports ZFS data integrity, immutability, and advanced SSD optimization technologies. CPUIntel® Core™ i5-1235U, 10C (2P+8E)/12T, 4.4GHzCPU Architecture64-bit x86Graphic ProcessorsIntel® Iris® Xe Graphics eligibleEncryption Engine YesHardware-accelerated TranscodingYes System Memory16 GB on board (non-expandable)Maximum Memory16 GB on board (non-expandable)Flash Memory5GB (Dual boot OS protection)Drive Bay5 x E1.S up to 15mm (5x PCIe Gen3 x2)Pre-install adapter to support M.2 2280 for each slotsDrive CompatibilityE1.S or M.2 2280 PCIe NVMeHeatsinks of M.2 must not exceed a height of 4.5 mmHot-swappableYes M.2 Slot5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)The system is shipped without SSD.For the SSD compatibility list, please visit https://www.qnap.com/compatibility/SSD Cache Acceleration SupportYes 2.5 Gigabit Ethernet Port (2.5G/1G/100M)110 Gigabit Ethernet Port1 x 10GBASE-T (10G/5G/2.5G/1G/100M)Wake on LAN (WOL)Yes Jumbo FrameYes Thunderbolt Port2 (Thunderbolt™ 4)Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.USB 2.0 port1USB 3.2 Gen 2 (10Gbps) Port2HDMI™ Output1, HDMI™ 1.4bForm FactorSet-top designLED IndicatorsStatus, USB copy, SSD 1-5ButtonsStatus, USB copy, ResetDimensions (HxWxD)60 × 215 × 199 mmWeight (Net)2.24 kgOperating Temperature0 – 40 °C (32°F – 104°F)Storage Temperature-20 – 70°C (-4°F – 158°F)Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)Power Supply Unit120W Adapter (19VDC output, 100-240VAC input)Power Consumption: Operating Mode, Typical46 WFanSystem fan: 2 x 40mmSystem WarningBuzzerStandard Warranty3Max. Number of Concurrent Connections (CIFS) – with Max. Memory1500
